Chav Turbine Lube Roj Lim

Vacuum Type steam turbine lube oil filter mainly designed to purify various industrial waste oils with the viscosity lower than 320 mm²/s, such as tirbine oil, mechanical oil, hydraulic oil and cooler oil etc. which are polluted by the water infiltration, emulsification and particle pollution etc. in the process of their production, transportation and usage.

Los ntawm kev tsim tshwj xeeb ntawm lub tshuab nqus tsev sib cais thiab lub impurity filtering system, Tongrui roj purifiers tuaj yeem lim tawm ntau yam kuab paug hauv cov roj.

Lub tshuab nqus tsev vacuum chav turbine lub roj lim t muaj txiaj ntsig zoo ntawm kev lag luam, nws yuav yog qhov kev xaiv zoo tshaj plaws rau cov nroj tsuag tu kev pabcuam, lub zog-txuag thiab nqi-txo.

Cov qauv tsim tshwj xeeb thiab cov cuab yeej paub tab tuaj yeem cog lus rau nws tom qab -kev kho cov roj ntsuas:

Cov ntsiab lus dej: Tsawg dua lossis sib npaug li 50ppm

Pom tseeb: 3 micron

Particle: tsis muaj (los ntawm kev kuaj pom)

Specifications:

◆Spare Parts

1.filtration system

Covchav turbine lube roj lim

tshuab siv ntau-theem filtration system, pre-filter yog stainless hlau uas tuaj yeem siv tau los ntawm kev rov ntxuav dua thiab cov lim zoo yog cov khoom siv ntshuam.

2. Cua sov system

Heating system consists of heater, temperature controller and other components . Multiple sets of heaters can be used alone, can also be put into use at the same time. The start for heater is controlled by the temperature set on the temperature controller.Temperature control device must be started under the running of vacuum pump and oil pump. Therefore, in the three interlocking, not only ensure the safe operation of the heater, but also prevent from producing "dead" oil zone and the oil aging, at the same time it can monitoring the heating system and control the heater works within a set temperature range. When the heater temperature exceeds the set point, the machine can be automatically stop the heater running to ensure the safety of the machine, oil and personnel.

3. Lub tshuab nqus tsev

Vacuum system consists of a vacuum separator, vacuum pumps, condensers, coolers and other components. Using the " cavitation " principle, the contact area of the oil expands hundreds times of the original in the vacuum separator, while the "cavitation" system and the evaporation surface area of the oil is increasing, and evaporated interface constantly updated to maximize the travel of the oil in the vacuum system and static water evaporation area.

4.automatic tswj qhov system thiab tiv thaiv qhov system

Tsis siv neeg tswj qhov system muaj infrared sensors, motors, solenoid li qub, tiv thaiv cov khoom thiab lwm yam khoom.
5. cua txias system
Nws muaj xws li cov cua kub exchanger, txias, radiator, dej reservoir thiab lwm yam khoom. Cov dej vapor thiab lwm yam roj uas ua los ntawm lub tshuab nqus tsev sib cais, nws hloov mus rau hauv dej tom qab dhau los ntawm cov cua kub exchanger mus rau hauv lub txias txias, lub radiator thiab sau rau hauv dej. Lub tshuab ziab khaub ncaws yog tawm los ntawm lub tshuab nqus tsev twj, yog li nws tuaj yeem tiv thaiv lub tshuab nqus tsev twj.

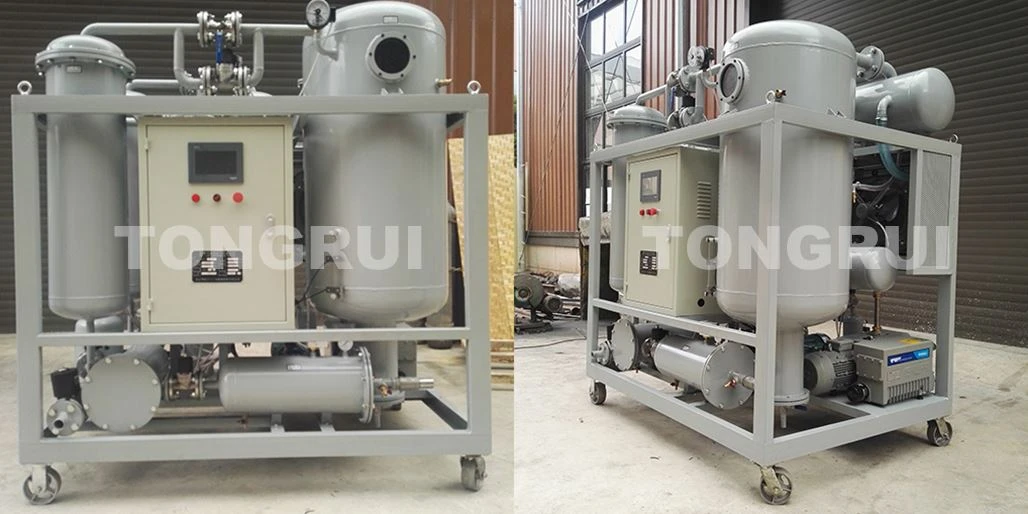

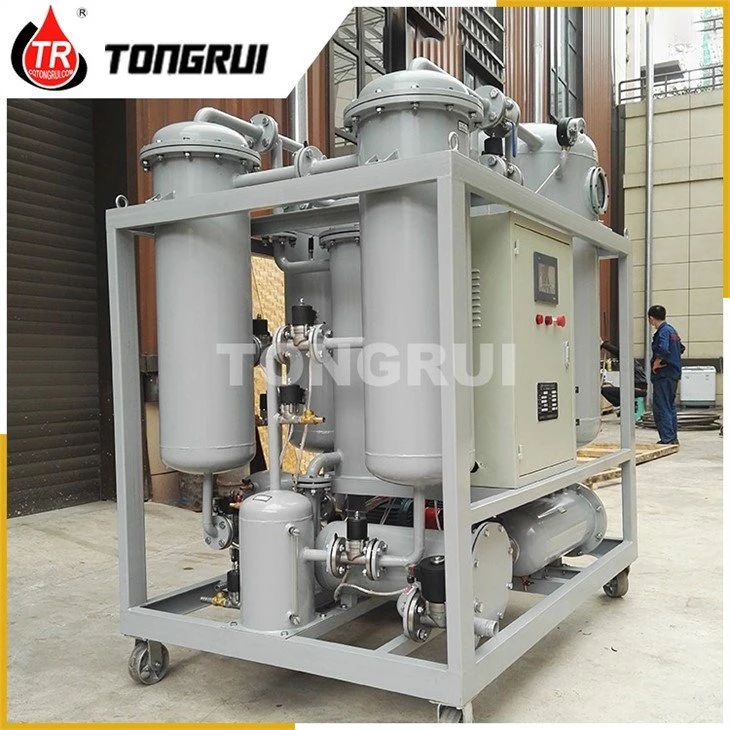

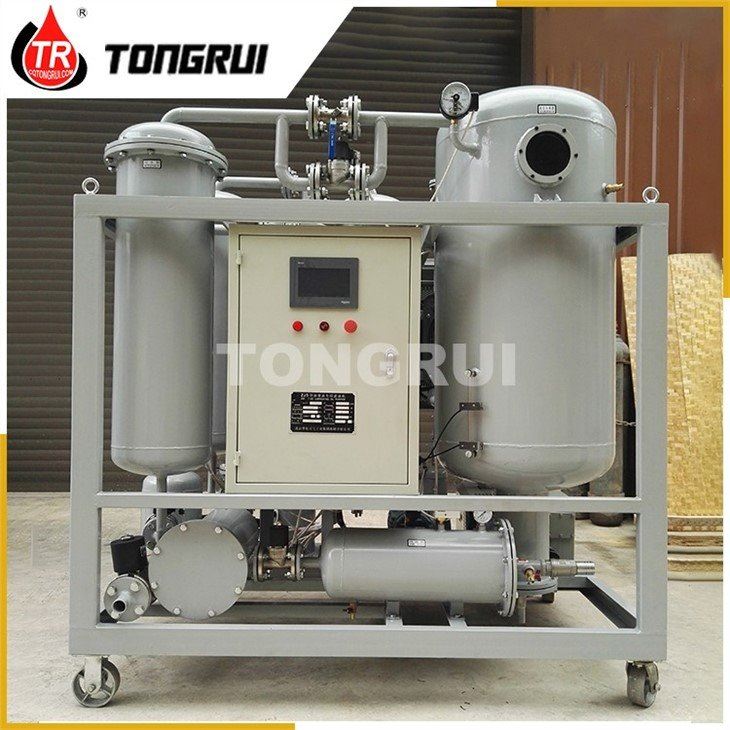

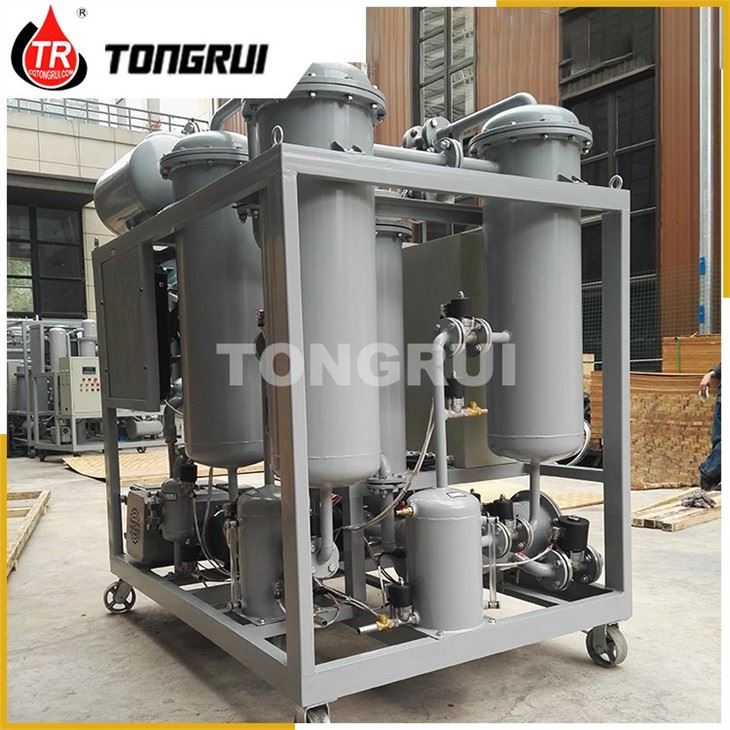

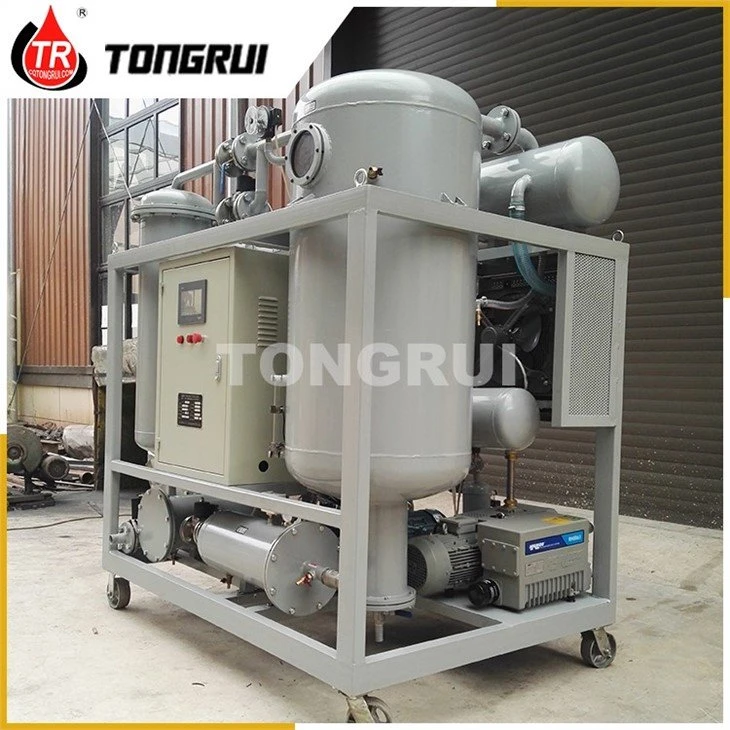

Chav turbine lube roj lim duab:
