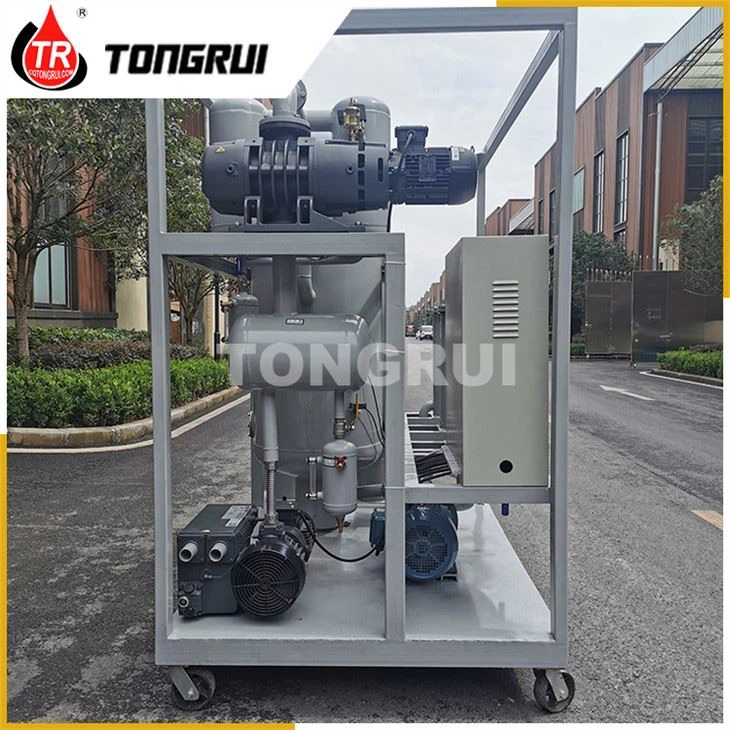

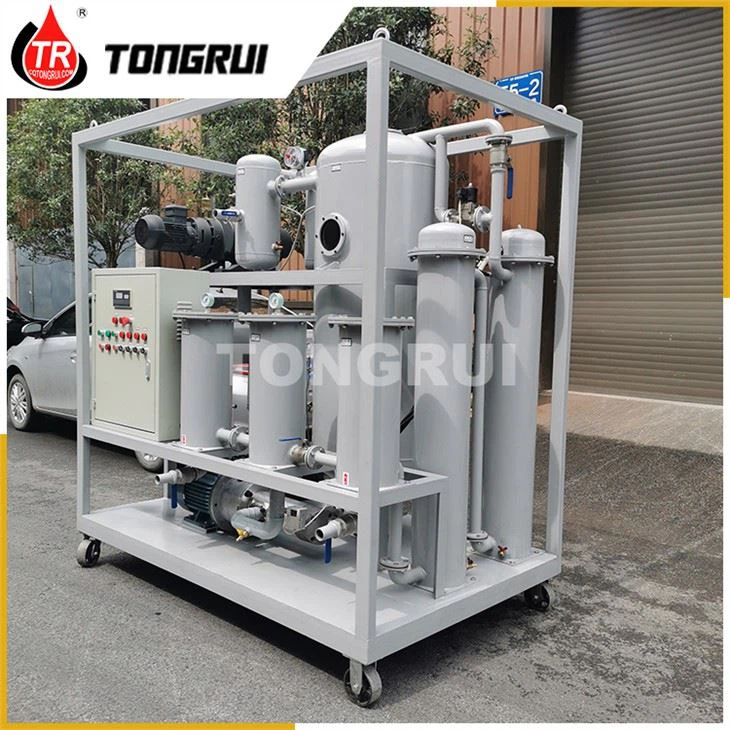

Ob theem Theem Nqus Transformer Roj Purification Tshuab
1. Lub transformer roj purification tshuab ntawm Tongrui Roj Purifier Manufacturing Co., Ltd. muaj ntau yam khoom specifications. Piv txwv li, nws muaj ntau hom kev khiav dej num thiab qhov hnyav. Koj tuaj yeem xaiv cov khoom koj xav tau. Xws li ob -theem nqus roj lim.
2. Qhov no ob -theem lub tshuab nqus tsev roj lim yog tsim raws li cov qauv uas tshaj li kev cai lij choj Suav. Lub super- nqus dej loj ob- theem lub tshuab nqus tsev roj lim tuaj yeem ua kom huv sai thiab ua kom huv huv tag nrho cov roj insulating ntawm cov khoom siv fais fab, yog li tshem cov roj sai thiab ua tau zoo. Dej, roj thiab impurities. Kev txhawb nqa zoo rau lub tshuab nqus tsev siab thiab nqus nrawm. Yog li ntawd, lub zog ntawm cov roj insulating yog zoo heev, thiab cov roj ua lub sij hawm luv luv.
Kev piav qhia
Product Description:
ZLA series transformer roj purification tshuab yog tsim raws li ib tug qauv uas mus dhau Suav txoj cai mandates, lub super loj absorptive ob-theem nqus tsev vacuum purify tag nrho cov rwb thaiv tsev roj ntawm lub hwj chim khoom sai thiab nyob rau hauv ntau qhov tob uas tshem tawm dej, roj thiab impurity nyob rau hauv cov roj tau sai thiab zoo nrog kev txhawb nqa ntawm lub tshuab nqus tsev siab thiab nqus nrawm. Yog li lub zog ntawm rwb thaiv tsev roj ntau ntxiv thiab lub sij hawm rau kev kho roj yog luv.

Nta ntawm Transformer Roj Purification Tshuab:
Ua raws li cov qauv uas dhau mus dhau txoj cai lij choj, thawj qhov kev puas tsuaj hluav taws xob tuaj yeem nce 35KV thiab txo qhov kev puas tsuaj rau cov roj uas tshwm sim los ntawm cov purifiers ib txwm vim muaj cua sov dua.
Kev nqus nrawm nrawm ob lub tshuab nqus tsev txaus siab rau cov kev xav tau ntawm lub tshuab nqus tsev vacuum ntawm lub tshuab hluav taws xob ntawm qhov chaw teeb tsa lossis kho qhov chaw, thiab cov dej / roj tshem tawm ntawm cov roj hloov pauv tuaj yeem ua tiav tib lub sijhawm, uas ua rau lub sijhawm luv rau kev kho roj.
Lub tshuab tshem tawm cov pa roj / dej tshwj xeeb siv lub tso suab- evaporation thev naus laus zis, uas sib cais cov dej thiab cov pa hauv cov roj thiab lub kaw lus sai sai, tsis muaj kev saib xyuas.
Kev ua kom huv huv zoo tshaj plaws nrog cov txheej txheem lim dej zoo tshaj plaws, uas tuaj yeem ua kom haum rau ntau qhov av thiab yog dandified zuj zus mus. Cov tub ntxhais lim dej tau txais qhov tseeb siab thiab ntau-theem pom.
Cov khoom xa tuaj yog siv rau tag nrho - hluav taws xob system, uas ua kom cov khoom siv ua haujlwm tau zoo.
Lub tshuab ua kua qib siab infrared nrog kev tswj tsis siv neeg, tso cai rau kev sib cais ntawm cov neeg siv phau ntawv los ntawm lub tshuab.
Purifiers yog nruab nrog cov khoom siv tiv thaiv kev ruaj ntseg. IE, thim rov qab ntawm A roj qhov hluav taws xob overpressure tuaj yeem ua tiav ntawm lub valve dhau, B roj inlet yuav cuam tshuam nrog cov cua sov uas tsis txhob muaj qhov cuam tshuam tsis zoo los ntawm mal-kev ua haujlwm
Precision roj twj tso kua mis rau lub hom phiaj raug siv, uas muaj suab nrov tsawg thiab ib puag ncig kev tswj hwm tau zoo.

Technical Parameters ntawm Transformer Roj Purification Cog:
Qauv | Chav tsev | ZAJ-20 | ZAJ-30 | ZAJ-50 | ZAJ-75 | ZAJ-100 | ZAJ-150 | ZAJ-200 |
Rated ntws | L / min | 20 | 30 | 50 | 70 | 100 | 150 | 200 |
Vacuum Range | Mpa | -0.05-0.099 | ||||||
Qhov kub thiab txias | Qib centigrade | 4080 | ||||||
Roj twj tso kua mis siab | Mpa | 0.050.3 | ||||||
Tag Nrho Lub Zog | kws | 33 | 38 | 46 | 62 | 90 | 120 | 144 |
Hwj chim | 50HZ 380V | |||||||
Ua hauj lwm suab nrov | db(A) | Tsawg dua lossis sib npaug li 6585 | ||||||
Kev huv huv | NAS 1638 | Tsawg dua lossis sib npaug rau NAS 6 | ||||||
Kev tawg Voltage | kv ua | Ntau dua lossis sib npaug li 75 | ||||||
Cov ntsiab lus dej hauv cov roj | PPM | Tsawg dua los yog sib npaug 3 | ||||||
Cov ntsiab lus roj hauv cov roj | feem pua | Tsawg dua lossis sib npaug rau 0.05 | ||||||
Lim precision | ua um | Tsawg dua los yog sib npaug 3 | ||||||
Inlet (qhov hluav taws xob) txoj kab uas hla | 25 | 25 | 32 | 32 | 42 | 50 | 60 | |
Dimension(mm) | L | 1380 | 1480 | 1670 | 1820 | 2000 | 2100 | 2300 |
W | 870 | 980 | 1150 | 1300 | 1500 | 1600 | 1800 | |
H | 860 | 950 | 1000 | 1200 | 1300 | 1600 | 1600 | |

Peb cov khoom npe:
ZJA Double Stage Vacuum Transformer oil Purifier
ZJB Single-stage High-Efficiency Vacuum Oil Purifier
ZJL Insulation Oil Multifunctional Oil Purifier
ZJR Multi-functional Double-Stage Vacuum Oil Regeneration Plant
ZJD lubrication Oil Specialized Purifier
ZJD-R Lubricating oil multi-function regeneration oil purifier
ZJD-S Special Off Water Oil Filter
ZJC Turbine oil vacuum purifier
ZJD-F Oil and Water Separator
BZ Decolorizing regeneration unit
YL/YL-B Series Portable Oil Filtration Machine
BK Press-filter purification plant
Tongrui is a very professional and well-known oil purifier manufacturer in the oil recovery industry. We have the most advanced and unique technology and formula in the world. If you have any questions or needs about transformer oil purifiers, please feel free to contact us.
