Daim ntawv thov:
ZJB high efficiency transformer roj purifier, feem ntau yog rau lub hwj chim chaw nres tsheb, industrial thiab mining tuam txhab uas muag purifying lub unqualified transformer roj, kev sib nrig sib inductor roj, hloov roj thiab hais txog.
ZJB high efficiency transformer roj purifier tuaj yeem tshem tawm dej, taug qab dej, roj, cov khoom los ntawm cov roj sai thiab zoo, txhim kho cov roj dielectric zog. Tsis tas li ntawd, cov roj purifier no tuaj yeem siv rau cov khoom siv hluav taws xob kom qhuav, thiab nqus cov roj.
Nta:
1 Raws li qhov xav tau ntawm kev ua haujlwm, lub tshuab no siv lub log tsheb, uas tuaj yeem txav tau yooj yim mus rau txhua qhov chaw ua haujlwm los ntawm traction. Nws tuaj yeem txav tau kms ib teev, uas haum rau kev ua haujlwm hauv qhov chaw qus.
2 Lub tshuab tshwj xeeb yog siv rau lub tshuab nqus tsev ntim cov roj thiab ziab rau cov khoom siv hluav taws xob uas muaj zog tshaj 110KV.
3 Nws yog tshwj xeeb tshaj yog haum rau purifying transformer roj uas nyob rau hauv teb. Lub tshuab no tuaj yeem rov qab tau cov roj transformer tiag tiag. Cov roj kho transformer tuaj yeem rov siv dua hauv transformer.
Tshuab Parameter:
|
Yam khoom |
UNIT |
ZAJ-10 |
ZJB -20 |
ZJB -30 |
ZJB -50 |
ZJB -75 |
ZJB -100 |
ZJB -150 |
ZJB -200 |
ZJB -300 |
|||||||||||
|
Tus nqi ntws |
L/H |
600 |
1,200 |
1,800 |
3,000 |
4,500 |
6,000 |
9,000 |
12,000 |
18,000 |
|||||||||||
|
Vacuum Range |
MPa |
-0.065----0.098 |
|||||||||||||||||||
|
Ua hauj lwm siab |
MPa |
<> |
|||||||||||||||||||
|
Qhov kub thiab txias |
C |
45-80 |
|||||||||||||||||||
|
Fais fab mov |
V |
-20Hz 380V (los yog raws li xav tau) |
|||||||||||||||||||
|
Ua hauj lwm suab nrov |
dB |
<> |
|||||||||||||||||||
|
Cov ntsiab lus dej |
PPm |
<=5 after=""> |
|||||||||||||||||||
|
Cov ntsiab lus roj |
feem pua |
<=0.1 after=""> |
|||||||||||||||||||
|
Qhov loj me ntawm impurities |
ua um |
<=5 after=""> |
|||||||||||||||||||
|
Kev tawg Voltage |
Kv |
65KV tom qab kho |
|||||||||||||||||||
|
Lub zog cua sov |
Kw |
9 |
15 |
18 |
30 |
50 |
60 |
80 |
100 |
220 |
|||||||||||
|
Tag nrho lub zog |
Kw |
11 |
17 |
21 |
33 |
54 |
65 |
102 |
125 |
250 |
|||||||||||
|
Inlet los yog qhov hluav taws xob |
Mm |
DN 25 |
DN 25 |
DN 25 |
DN 32 |
DN42 |
DN42 |
DN 50 |
DN 60 |
DN 60 |
|||||||||||
|
Net nyhav |
Kg |
240 |
260 |
280 |
310 |
850 |
730 |
1150 |
1350 |
1800 |
|||||||||||
|
Loj (nyob ntawm cov khoom) |
L |
1500 |
1050 |
1150 |
1200 |
1300 |
1700 |
1600 |
1600 |
2000 |
2200 |
||||||||||
|
W |
1100 |
750 |
800 |
800 |
900 |
1150 |
1200 |
2200 |
1500 |
1500 |
|||||||||||
|
H |
1750 |
1400 |
1450 |
1500 |
1600 |
1800 |
1850 |
2000 |
2200 |
2400 |
|||||||||||
Qauv
◆Dehydration (Degas) System
◆Filtering System (particulate matter removal)
◆Oil heating System
◆Vacuum Pump
Main Certificate of Machinery:
◆1.Environment Friendly
◆2. ISO
◆3. Certificate of explosion-proof
◆4.Technical Patent

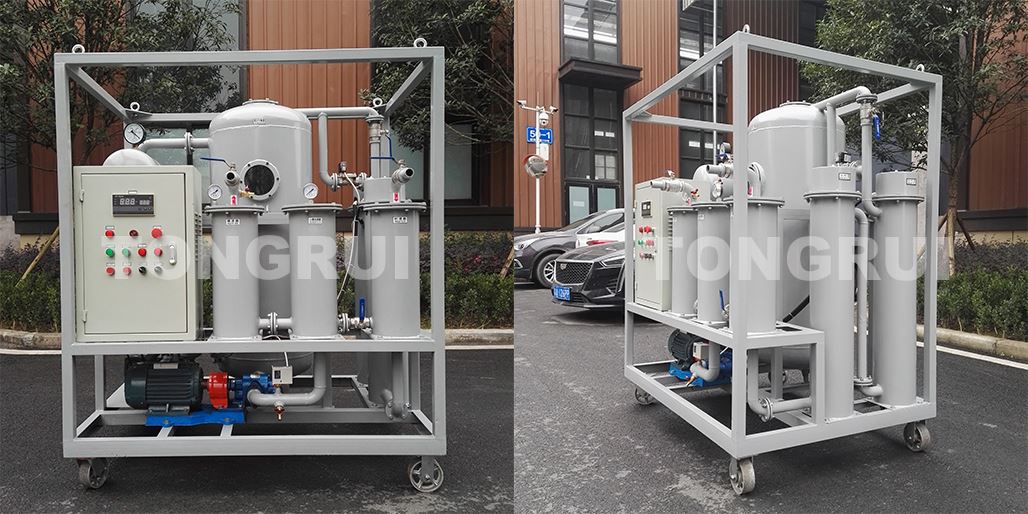

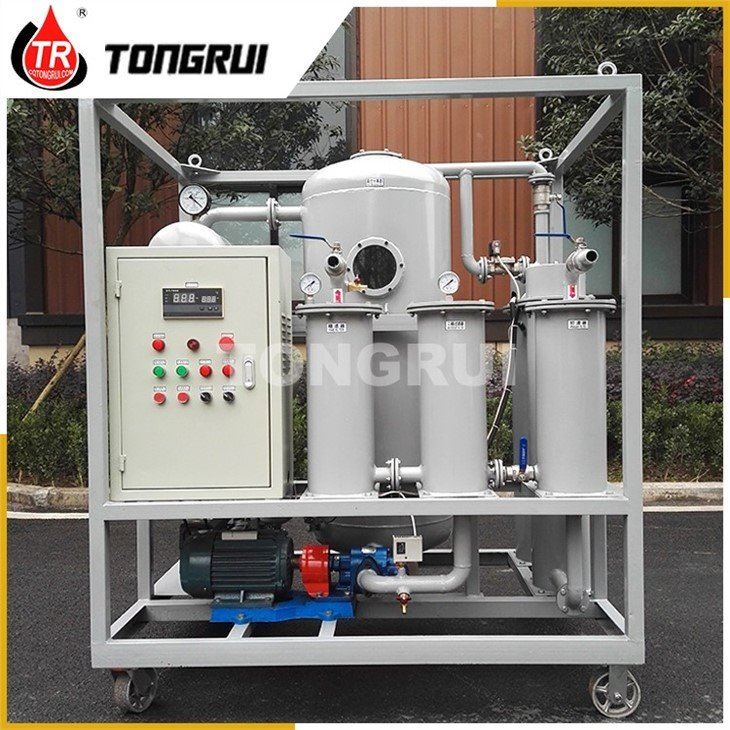

High npaum transformer roj purifier duab:
